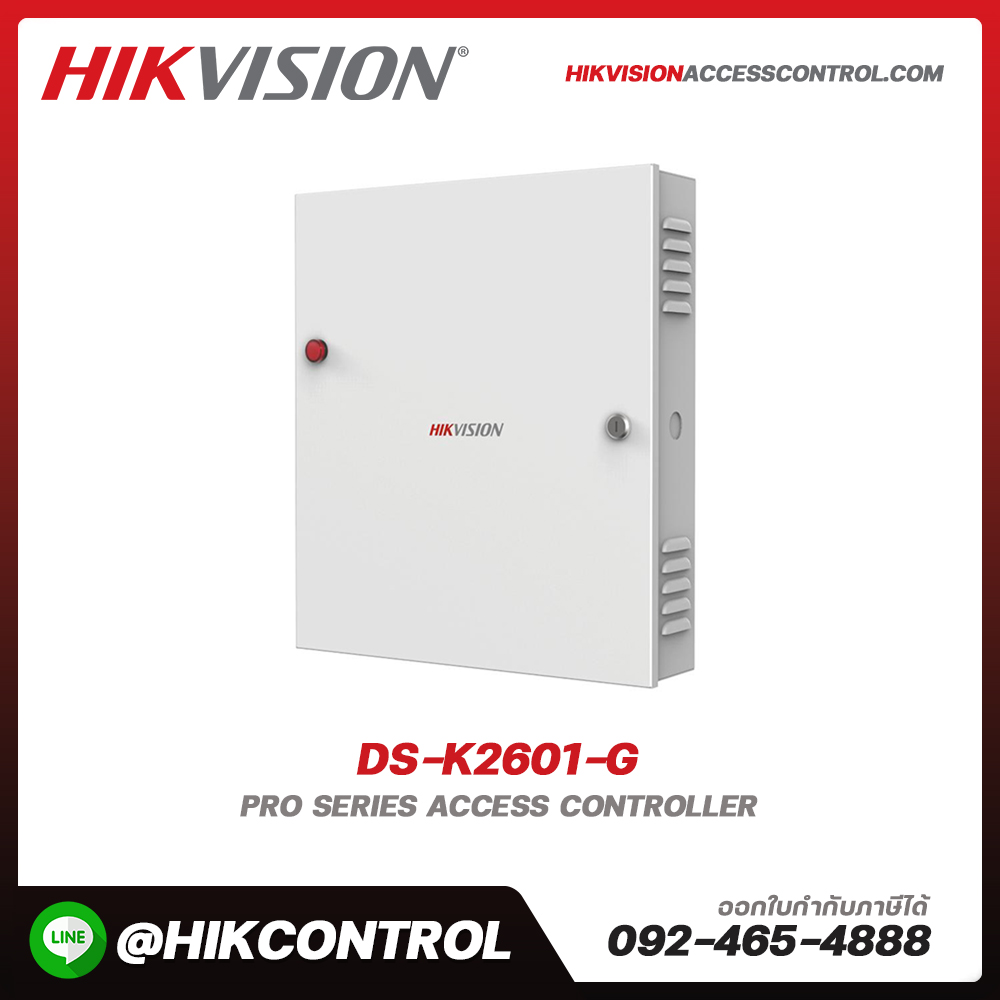

HIKVISION DS-K2600 Series Access Controller รุ่น DS-K2601-G

Specifications

• Working voltage: DC 12V/1A
• Power supply (with Load): ≤ 50 W
• Power supply: (Without Load) ≤ 4 W
• Processor: 32-bit Storage 32 M
• Communication: TCP/IP, RS-485, Wiegand (W26/W34)
• Capacity: 100,000 cards 300,000 events
• LED Indicator: Power supply status, communication status, and work status
• Built-in Clock:  Support
• Accessible Card Reader: 2 card readers (RS-485 interface), and 2 card readers (Wiegand interface)
• Input interface: Alarm input × 4, door contact × 1, exit button × 1, case input × 2, tamper alarm × 1
• Output interface: Lock relay × 1, alarm relay × 2
• Working temperature: -20 °C to +65 °C (-4 °F to +149 °F)
• Working humidity: 10% to 90% (Non-condensing)
• Dimensions: (L × W × H) 398 mm × 474 mm × 100 mm (15.7" × 18.7" × 3.9")
• Approval: CE, FCC, CB, UL294
